Raphael ITH Sleep Mask Machine Embroidery Design
By knowing the speed of your embroidery machine, you can find out how long it will take to embroider a design.
To use the embroidery calculator, click on the number of stitches in the product description.

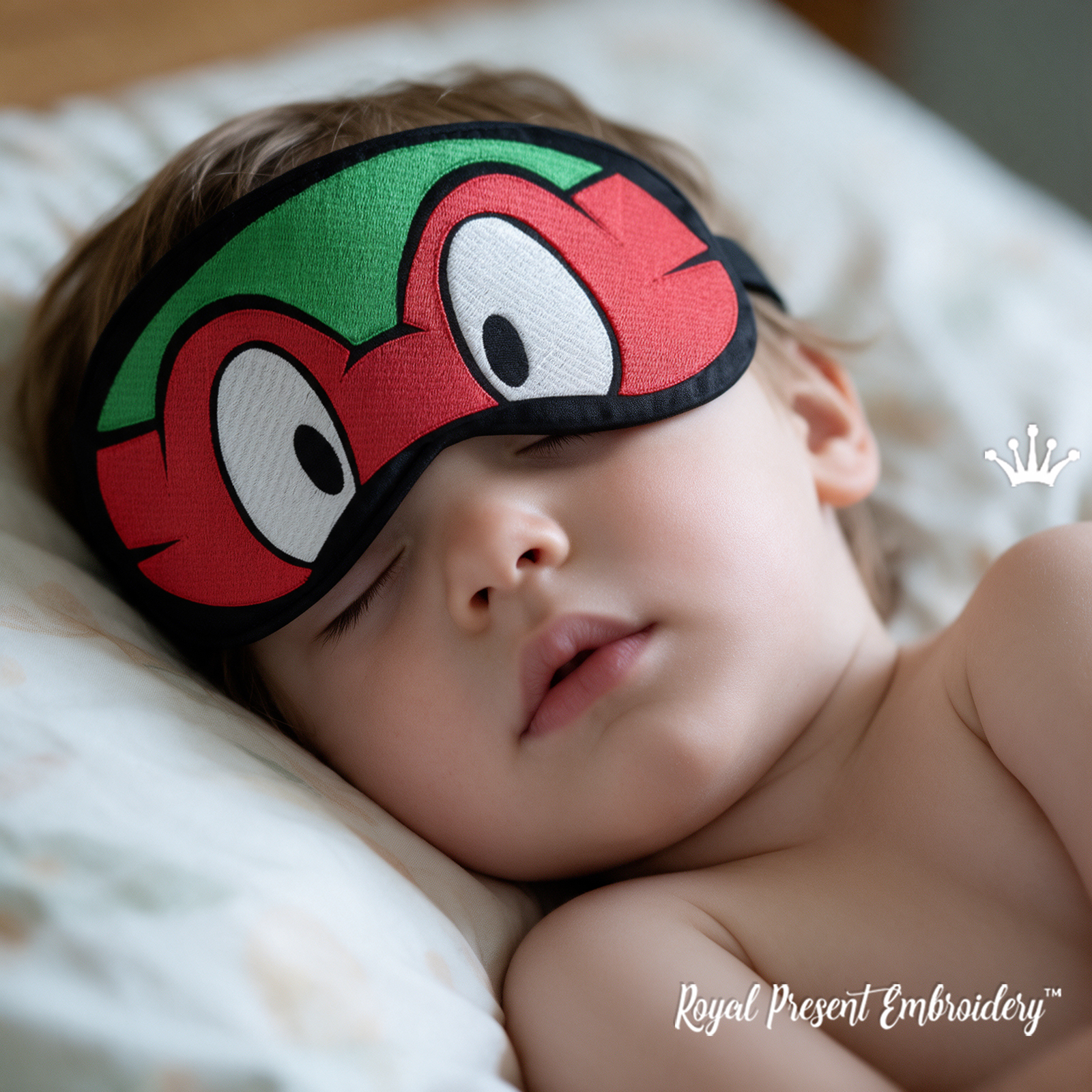

Raphael ITH Sleep Mask Machine Embroidery Design creates a fully lined sleep mask with a green face, red eye band and bold white eye areas. The complete project is assembled in the hoop using two pieces of black fabric. The dark oval centers of the eyes are exposed black fabric, not a separately embroidered thread color.
Size: 88.1x179.0 mm (3.47x7.05"). Stitches: 18472
Formats: .dst, .jef, .pec, .vip, .hus, .pes, .exp, .sew, .dat, xxx, vp3
Hoop and Construction Details
|
Detail
|
Specification
|
|---|---|
|
Minimum hoop
|
130x180 mm (5x7") or larger
|
|
Technique
|
ITH construction completed in one hooping
|
|
Number of designs
|
1 design in 1 size
|
|
Finished construction
|
Fully lined mask with a turning opening
|
Madeira Classic 40 Thread Chart
The thread numbers and stitching order below are taken from the original color chart. The colored squares are screen references only. The appearance of real rayon thread varies with lighting, sheen, monitor settings and dye lot.
|
Color
|
Madeira Classic 40
|
Function in the Design
|
|
|---|---|---|---|
|
|
1007
|
Initial and final construction outlines
|
|
|
|
1051
|
Green facial areas
|
|
|
|
1146
|
Raphael’s red eye band
|
|
|
|
1004
|
White eye areas
|
|
|
|
1140
|
Two short technical stitches at the strap attachment points
|
Color-block sequence: 1007 → 1051 → 1146 → 1004 → 1140 → 1007.
Important: the dark oval centers inside the eyes are not an additional thread color. The black base fabric remains visible through these open areas.
For Isacord, Sulky, Brother and other thread brands, use the Madeira thread converter. The converter provides the nearest available match, not a guaranteed identical shade.
Fabric and Stabilizer
Use stable black woven fabric for the front, approximately 140–220 g/m² (4.1–6.5 oz/yd²). Cotton, twill, gabardine or firm satin are suitable starting choices. For the back, choose smooth cotton sateen or soft lining fabric around 100–160 g/m² (3–4.7 oz/yd²).
For stable cotton, begin with a medium tear-away stabilizer around 50–60 g/m². For thin, slippery or soft fabric, use a soft cut-away or no-show mesh around 35–50 g/m². Hoop the fabric and stabilizer together without stretching them.
- Use a 75/11 embroidery needle for standard cotton or an 80/12 needle for firmer fabric.
- Stitch the filled areas at approximately 600–700 stitches per minute.
- A dark bobbin thread makes the final construction seam less noticeable.
- Avoid thick fleece or high-pile fabric because it can cover the open eye details.
ITH Assembly
- Stabilize and hoop the black front fabric.
- Embroider the green face, red eye band and white eye areas in the programmed order.
- When the design reaches the final construction stage, stop the machine and position the ends of the elastic or ties at the side attachment points.
- Keep the loose lengths toward the center of the mask and away from the final seam. Secure them temporarily if necessary.
- Place the second piece of black fabric over the embroidered front with right sides together.
- Complete the remaining technical stitching and final joining outline.
- Trim the excess fabric, leaving approximately 3–4 mm around the seam. Clip the curves without cutting the stitching.
- Turn the mask right side out, shape the curved edges and close the opening with a ladder stitch.
Practical tip: before stitching the final contour, turn the machine handwheel through the first two or three stitches. This confirms that the needle will not strike the elastic and that the loose strap is clear of the stitch path.
Frequently Asked Questions
What type of elastic works best?
Use soft lingerie elastic approximately 8–12 mm wide. Check the required length around the wearer’s head before assembly. Elastic that is too short will create pressure, while loose elastic will not hold the mask securely.
How can I make the inside comfortable against the face?
Use smooth cotton sateen or soft lining fabric for the back. Keep the elastic joins and raw ends enclosed between the two fabric layers.
Can metallic thread be used for the red eye band?
The red section contains a relatively large filled area, so rayon or polyester is more practical. If metallic thread is used, choose a Metallic 80/12 or 90/14 needle, allow the thread to feed freely and reduce the speed to approximately 400–500 stitches per minute. Test the complete color block first.
Can the ITH file be resized?
Standard software scaling is not recommended. Resizing can alter stitch lengths, strap positions, seam allowances and the final construction outline.
This is a digital machine embroidery file. A finished sleep mask, fabric, thread and other physical materials are not included.
